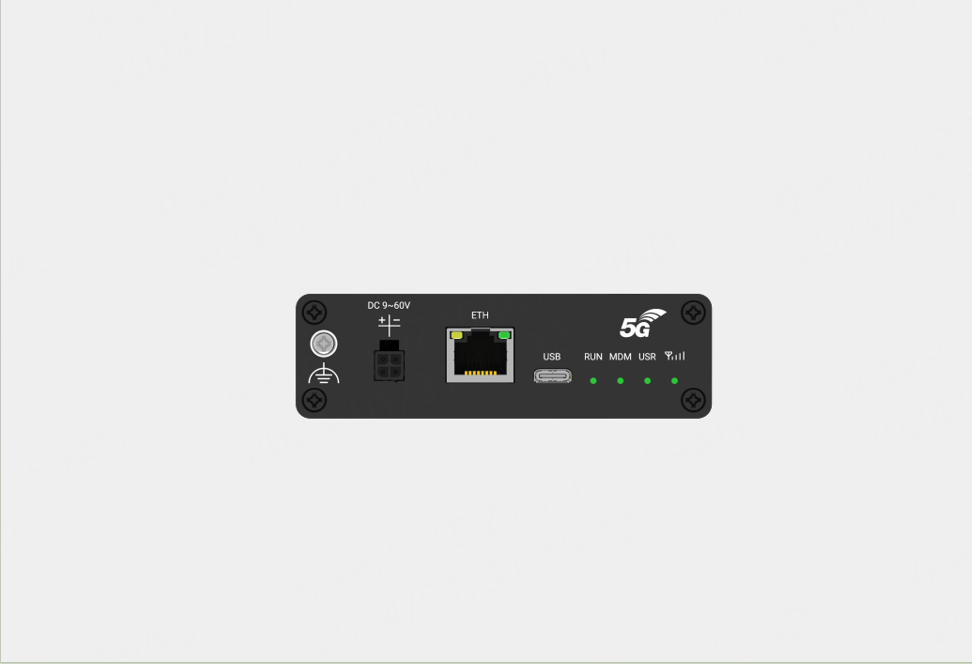

The R5010 is Robustel’s new 5G capable router supporting global 5G, 4G and 3G bands. The R5010 leverages our tried and tested high performance RobustOS 5 – an Operating System developed in-house by Robustel that has passed extensive 3rd party penetration testing.

The R5010 is Robustel’s advanced 5G router, designed to support global 5G, 4G, and 3G networks. It operates on RobustOS 5, an in-house developed operating system that has undergone extensive third-party penetration testing to ensure high performance and security.

Key Features:

Global Connectivity: Supports worldwide 5G, 4G, and 3G bands, ensuring versatile and reliable connections.

High-Speed Ethernet: Equipped with a Gigabit Ethernet port, providing fast and stable wired connections.

Power over Ethernet (PoE): Compatible with IEEE 802.3at standard, allowing for flexible installation without the need for separate power supplies.

USB Modem Mode: Offers USB 3.1 (Type C) port for power supply, network connectivity, and debugging purposes.

RobustOS 5: A fully programmable operating system with a well-documented Software Development Kit (SDK), supporting multiple VPN options including DMVPN, IPsec, and L2TP.

Compact and Durable Design: Features a robust metal enclosure with a small footprint, suitable for DIN-rail and wall mounting options.

Technical Specifications:

Cellular Interface:

Number of Antennas: 4 (ANT0, ANT1, ANT2, ANT3)

Connector Type: SMA-K

SIM Slots: 2 Mini SIMs (2FF)

Ethernet Interface:

Number of Ports: 1 x 10/100/1000 Mbps

Isolation Protection: 1 KV

PoE Support: IEEE 802.3at PD feature on Ethernet port

Power Supply and Consumption:

Input Voltage: 9 to 60 VDC; 5V/3A via USB Type C Port; PoE-PD Voltage: 44 to 57 VDC

Power Consumption: Idle: 1.5W; Data Link: 15W

Physical Characteristics:

Dimensions: 100 x 94 x 30 mm

Weight: 276 g

Operating Temperature: -40 to +70°C

Storage Temperature: -40 to +85°C

Relative Humidity: 5 to 95% RH

The R5010 is ideal for applications such as primary broadband, SD-WAN, industrial IoT, enterprise IT, smart cities, autonomous robots, CCTV, fixed-line backup, smart offices, industrial automation, and remote-controlled vehicles.
