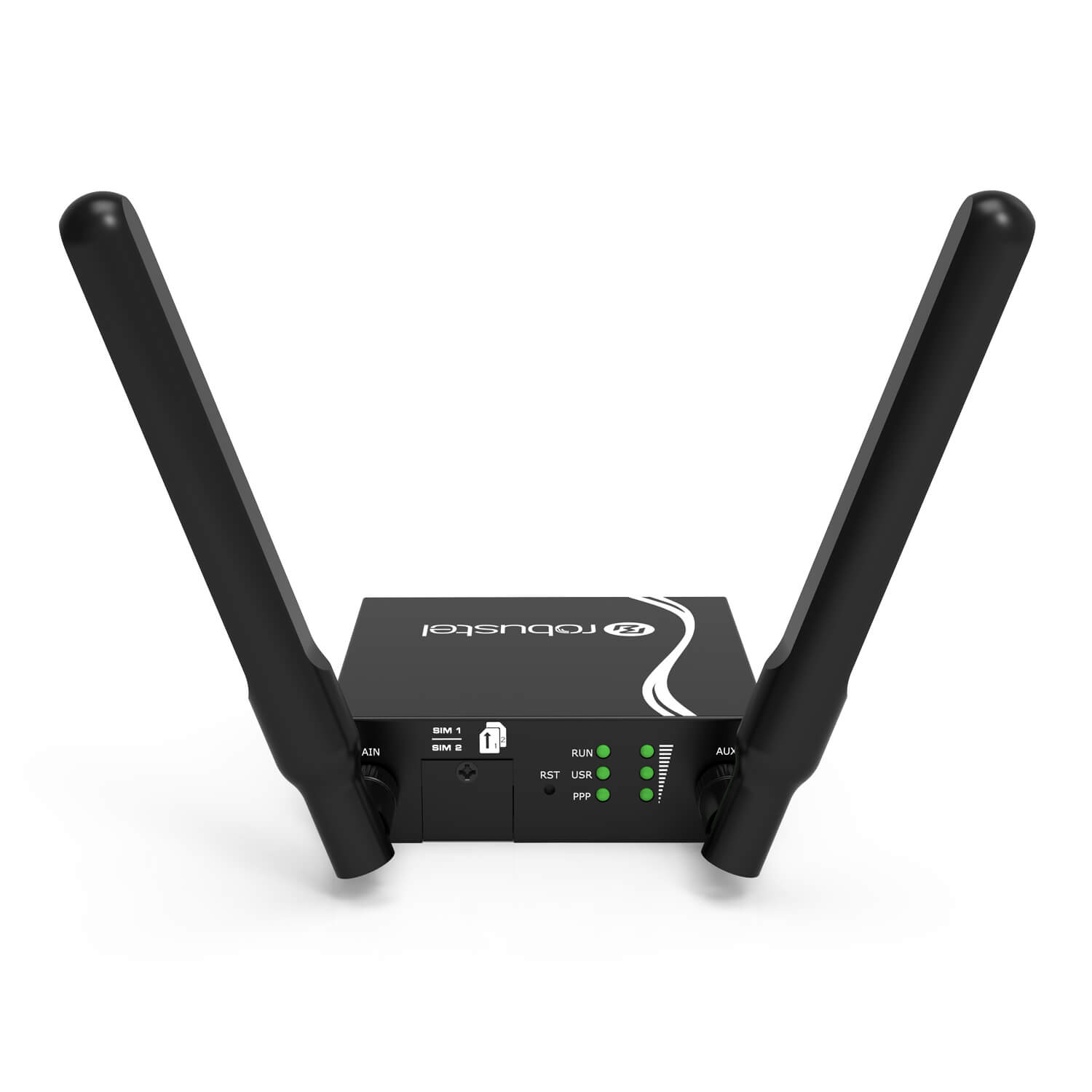

R3000 Lite Dual-SIM VPN Router

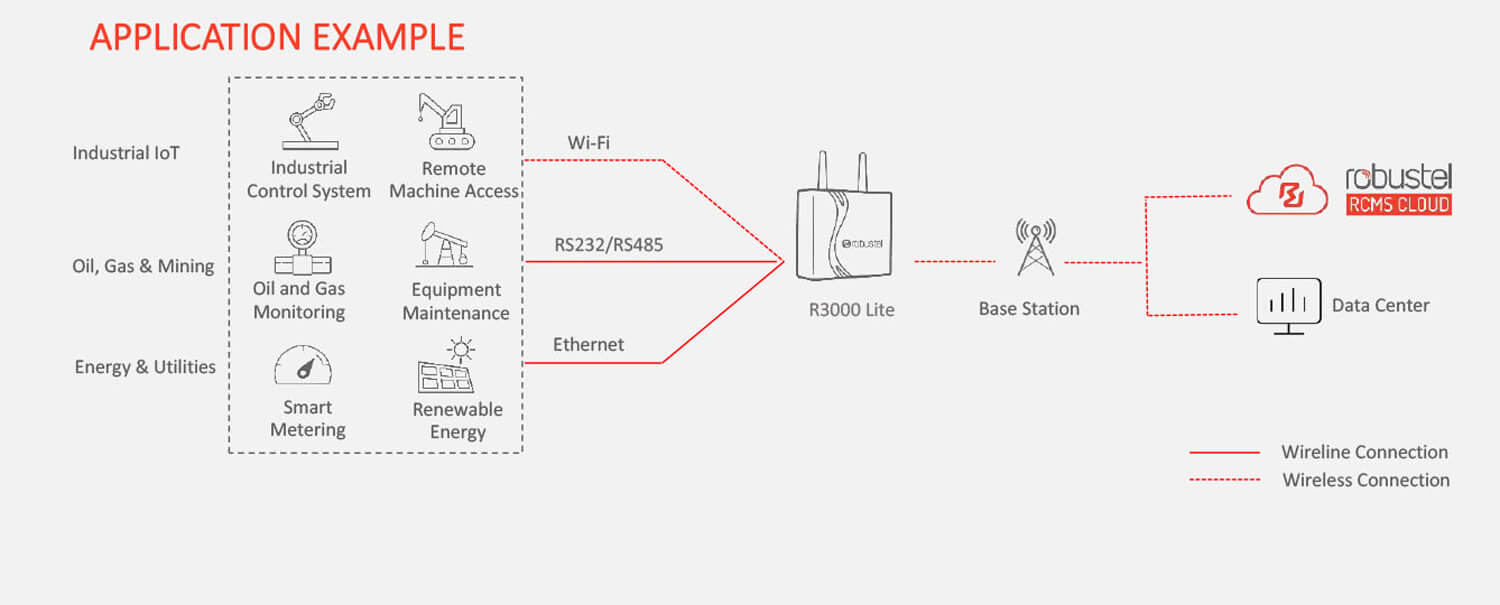

The R3000 Lite is an industrial-grade VPN router designed for cost-effective machine-to-machine (M2M) applications. Below are its technical specifications:

Cellular Interface:

Number of Ports: 2 (MAIN + AUX)

Connector: SMA-K

SIM Slots: 2 Mini SIM (2FF)

Supported Standards: GSM/GPRS/EDGE, WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+, TD-SCDMA, CDMA (CDMA 1X/EVDO), FDD LTE, TDD LTE

Ethernet Interface:

Number of Ports: 1 x 10/100 Mbps LAN port

Magnet Isolation Protection: 1.5 KV

Serial Interfaces:

Number of Ports: 1 x RS-232 and 1 x RS-485

Connector: DB9, female

ESD Protection: ±15 KV

Baud Rate: 300 bps to 230400 bps

Flow Control: RTS/CTS (for RS-232)

Other Interfaces:

Reset Button: 1 x RST

Expansion: 1 x USB 2.0 host up to 480 Mbps

LED Indicators: 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI

Built-in: RTC, Watchdog, Timer

Software Features:

Network Protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPS, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.

VPN Support: IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN

Firewall Features: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Management and Maintenance: Web, CLI, SMS, SNMP, RCMS

Serial Port Modes: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

Power Supply and Consumption:

Power Supply Interface: 3.5 mm terminal block

Input Voltage: 9 to 36 VDC

Power Consumption:

Idle: 100 mA @ 12 V

Data Link: 400 mA (peak) @ 12 V

Physical Characteristics:

Ingress Protection: IP30

Housing & Weight: Metal, 305 g

Dimensions: 105 x 98 x 30 mm

Installation Options: Desktop, wall mounting, or 35 mm DIN rail mounting
